Flat Bars/Strips

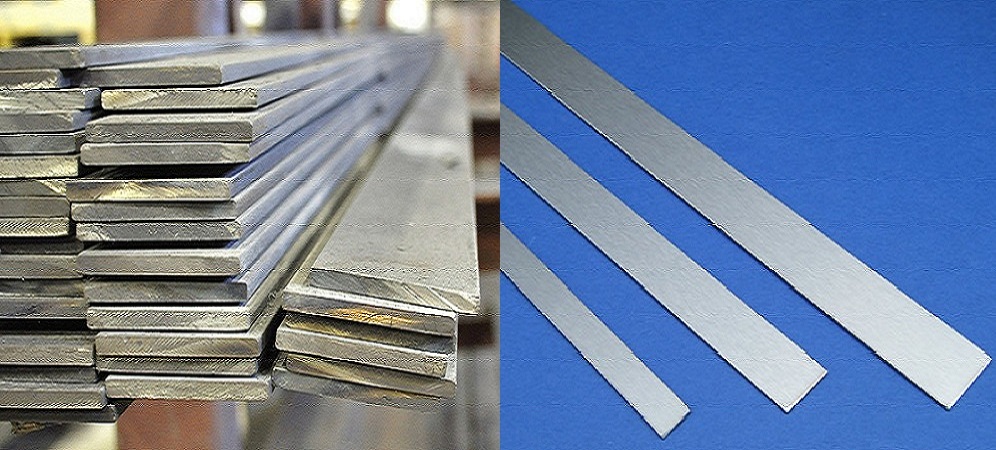

MILD STEEL FLAT BARS/STRIPS

Mild Steel Flat Bar is a product commonly used in fabrication.With a flat surface and square edge,this product comes in a range of widths and thicknesses.

This type of steel is often used in manufacturing, fabricating, contracting & for special projects that require a strong & malleable metal to be successful.

Strips are used in the energy, steelmaking, mechanical engineering or lifting and excavating industries. Steel strip is characterized by its high degree of corrosion resistance, excellent working properties and a wide spectrum of applications.

REACTIVE STEELS LLP

FLAT BARS - TECHNICAL SPECIFICATIONS AS PER INDIAN STANDARDS

DESIGNATION & SIZE	THICKNESS(mm)	WEIGHT PER MTR (Kg)
ISFLAT 10 \| 10	3,4,5,6	0.236-0.471
ISFLAT 16 \| 16	3,4,5,6,8,10,12	0.377-1.51
ISFLAT 20 \| 20	3,4,5,6,8,10,12,15	0.471-2.30
ISFLAT 25 \| 25	3,4,5,6,8,10,12,15,20	0.589 – 2.94
ISFLAT 30 \| 30	3,4,5,6,8,10,12,15,20	0.707 – 4.71
ISFLAT 35 \| 35	3,4,6,8,10,12,15,20	0.824 - 5.50
ISFLAT 40 \| 40	3,4,5,6,8,10,12,15,20,25,30	0.942 - 9.42
ISFLAT 45 \| 45	3,4,5,6,8,10,12,15,20,25,30	1.06 - 10.60
ISFLAT 50 \| 50	3,4,5,6,8,10,12,15,20,25,30	1.18 – 11.80
ISFLAT 60 \| 60	3,4,5,6,8,10,12,15,20,25,30,40	1.14 - 18.80
ISFLAT 65 \| 65	4,5,6,8,10,12,15,20,25,30,40	2.04 - 20.40
ISFLAT 70 \| 70	4,5,6,8,10,12,15,20,25,30,40	2.20 – 22.00
ISFLAT 75 \| 75	4,5,6,8,10,12,15,20,25,30,40,50	2.36 – 23.60
ISFLAT 80 \| 80	4,5,6,8,10,12,15,20,25,30,40,50	2.51 – 31.40
ISFLAT 90 \| 90	5,6,8,10,12,15,20,25,30,40,50	3.53 – 35.53
ISFLAT 100 \| 100	5,6,8,10,12,15,20,25,30,40,50	3.93 – 39.20
ISFLAT 120 \| 120	6,8,10,12,15,20,25,30,40,50	5.65 - 47.10
ISFLAT 130 \| 130	6,8,10,12,15,20,25,30,40,50	6.12 - 51.20
ISFLAT 140 \| 140	6,8,10,12,15,20,25,30,40,50	6.59 – 55.00
ISFLAT 150 \| 150	6,8,10,12,15,20,25,30,40,50	7.07 – 58.90
ISFLAT 160 \| 160	8,10,12,15,20,25,30,40	10.00 – 50.20
ISFLAT 180 \| 180	8,10,12,15,20,25,30,40	11.30 – 56.50
ISFLAT 200 \| 200	10,12,15,20,25,30,40	15.70 – 62.80
ISFLAT 250 \| 250	10,12,15,20,25,30,40	19.60 – 78.50
ISFLAT 300 \| 300	12,15,20,25,30,40	28.30 – 94.20
ISFLAT 400 \| 400	15,20,25,30,40	47.10 – 126.00

REACTIVE STEELS LLP

STRIPS - TECHNICAL SPECIFICATIONS AS PER INDIAN STANDARDS

DESIGNATION & SIZE	VARYING THICKNESS	WEIGHT PER MTR (Kg)
ISSTRP100 \| 100	1.6,1.8,2,2.24,2.5,2.8,3.15,3.55,4,4.5,5,6,8,10	1.25 – 7.85
ISSTRP125 \| 125	1.6,1.8,2,2.24,2.5,2.8,3.15,3.55,4,4.5,5,6,8,10	1.57 - 9.81
ISSTRP160 \| 160	1.6,1.8,2,2.24,2.5,2.8,3.15,3.55,4,4.5,5,6,8,10	2.01 – 12.60
ISSTRP200 \| 200	1.6,1.8,2,2.24,2.5,2.8,3.15,3.55,4,4.5,5,6,8,10	2.51 – 15.70
ISSTRP250 \| 250	1.6,1.8,2,2.24,2.5,2.8,3.15,3.55,4,4.5,5,6,8,10	3.14 – 16.60
ISSTRP320 \| 320	1.6,1.8,2,2.24,2.5,2.8,3.15,3.55,4,4.5,5,6,8,10	4.02 – 25.10
ISSTRP400 \| 400	1.6,1.8,2,2.24,2.5,2.8,3.15,3.55,4,4.5,5,6,8,10	5.02 – 31.4
ISSTRP500 \| 500	1.6,1.8,2,2.24,2.5,2.8,3.15,3.55,4,4.5,5,6,8,10	6.28 – 39.2
ISSTRP650 \| 650	1.6,1.8,2,2.24,2.5,2.8,3.15,3.55,4,4.5,5,6,8,10	8.16 – 51.00
ISSTRP800 \| 800	1.6,1.8,2,2.24,2.5,2.8,3.15,3.55,4,4.5,5,6,8,10 10.00	10.00 - 61.8
ISSTRP950 \| 950	1.8,2,2.24,2.5,2.8,3.15,3.55,4,4.5,5,6,8,10	13.4 – 74.6
ISSTRP1000 \| 1000	2,2.24,2.5,2.8,3.15,3.55,4,4.5,5,6,8,10	15.7 – 78.5
ISSTRP1050 \| 1050	2,2.24,2.5,2.8,3.15,3.55,4,4.5,5,6,8,10	16.5 - 82.4
ISSTRP1150 \| 1150	2.24,2.5,2.8,3.15,3.55,4,4.5,5,6,8,10	20.20 – 90.3
ISSTRP1250 \| 1250	2.5,2.8,3.15,3.55,4,4.5,5,6,8,10	24.5 – 98.10
ISSTRP1300 \| 1300	2.8,3.15,3.55,4,4.5,5,6,8,10	28.6 - 102
ISSTRP1450 \| 1450	3.15,3.55,4,4.5,5,6,8,10	35.8 - 114
ISSTRP1550 \| 1550	3.15,3.55,4,4.5,5,6,8,10	38.3 - 122
