Plates/Sheets

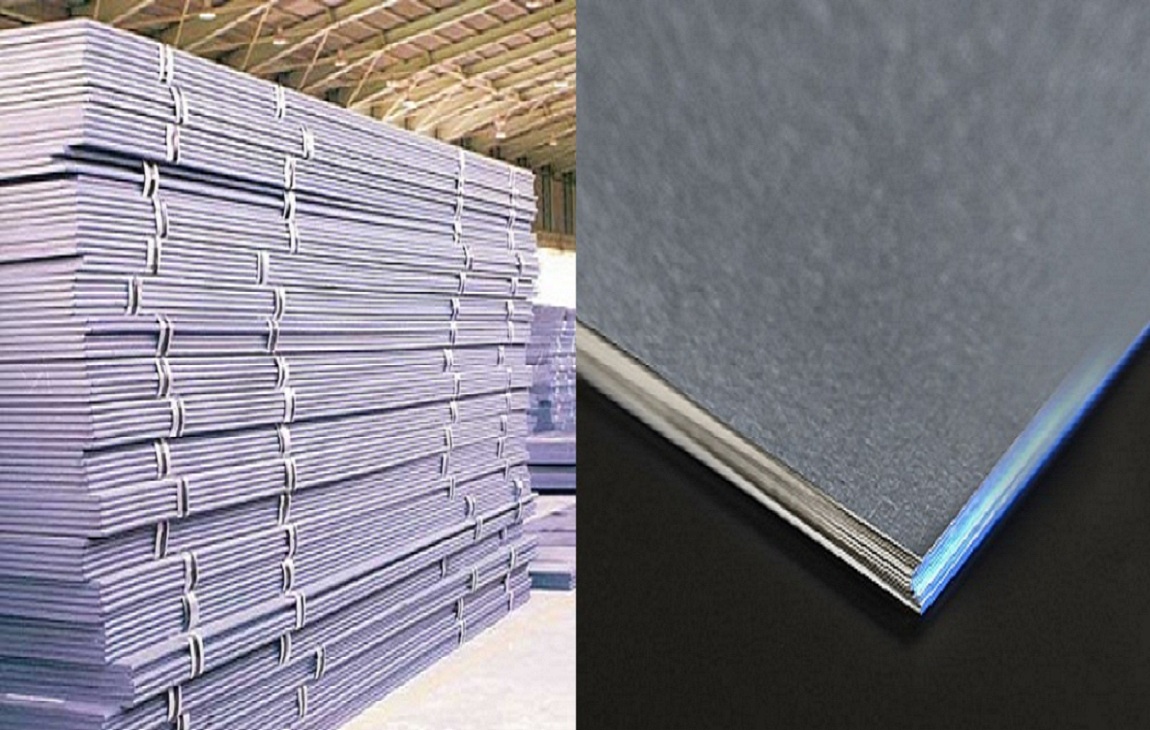

MILD STEEL PLATES & SHEETS

STEEL PLATES are materials often used to create metal products. Manufactured to different thicknesses and widths,steel plate is cut and welded together to create a final product. There are different types of plates.Some types of plate steel are used in the construction of buildings while others are used in the creation of everyday items. Steel plate is often referred to as flat steel.

SHEET METAL is metal formed by an industrial process into thin flat pieces. It is one of the fundamental forms used in metal working and it can be cut and bent into a variety of shapes. everyday Countless of objects are constructed with sheet metal. Thicknesses can vary significantly,extremely thin thicknesses are considered foil or leaf and pieces thicker than 5 mm are considered plate. Sheet metal is available in flat pieces or coiled strips.

Sheet metal is used for car bodies,airplane wings,medical tables,roofs for buildings(architecture)and many other applications.

REACTIVE STEELS LLP

PLATES - TECHNICAL SPECIFICATIONS AS PER INDIAN STANDARDS

DESIGNATION & SIZE	VARYING THICKNESS(mm)	WEIGHT PER MTR t(Kg)
ISPLATE \| 5 - 40	0.40 - 4.65
2200 X 900	5,6,7,8,10,12,14,16,18,20,22,25,28,32,36,40	35.3 – 283
2500 X 950	5,6,7,8,10,12,14,16,18,20,22,25,28,32,36,40	37.3 – 298
2800 X 1000	5,6,7,8,10,12,14,16,18,20,22,25,28,32,36,40	39.2 – 314
3200 X 1100	5,6,7,8,10,12,14,16,18,20,22,25,28,32,36,40	43.2 – 345
3600 X 1200	5,6,7,8,10,12,14,16,18,20,22,25,28,32,36,40	47.1 – 377
4000 x 1250	5,6,7,8,10,12,14,16,18,20,22,25,28,32,36,40	49.1 – 392
5000 x 1400	5,6,7,8,10,12,14,16,18,20,22,25,28,32,36,40	55.0 – 440
5600 x 1500	5,6,7,8,10,12,14,16,18,20,22,25,28,32,36,40	58.9 – 471
6300 x 1600	5,6,7,8,10,12,14,16,18,20,22,25,28,32,36,40	62.8 – 502
7100 x 1800	5,6,7,8,10,12,14,16,18,20,22,25,28,32,36,40	70.6 – 585
8000 x 2000	5,6,7,8,10,12,14,16,18,20,22,25,28,32,36,40	78.5 – 628
9000 x 2200	5,6,7,8,10,12,14,16,18,20,22,25,28,32,36,40	86.4 –691
10000 x 2500	5,6,7,8,10,12,14,16,18,20,22,25,28,32,36,40	98.1 – 785

REACTIVE STEELS LLP

SHEETS - TECHNICAL SPECIFICATIONS AS PER INDIAN STANDARDS

DESIGNATION & SIZE	VARYING THICKNESS(mm)	WEIGHT PER MTR t(Kg)
ISSHT	0.40 - 4.65
1800 X 600 - 1500	0.40,0.50,0.63,0.80,0.90,1,1.12, 1.25,1.40,1.60,1.80,1.90,2,2.24,2.5,2.8,3.15,3.55,4,4.3,4.65	3.39–98
2000 x 600 - 2500	0.40,0.50,0.63,0.80,0.90,1,1.12, 1.25,1.40,1.60,1.80,1.90,2,2.24,2.5,2.8,3.15,3.55,4,4.3,4.65	3.77-109
2200 x 600 - 2500	0.40,0.50,0.63,0.80,0.90,1,1.12, 1.25,1.40,1.60,1.80,1.90,2,2.24,2.5,2.8,3.15,3.55,4,4.3,4.65	4.14–120
2500 x 600 - 2500	0.40,0.50,0.63,0.80,0.90,1,1.12, 1.25,1.40,1.60,1.80,1.90,2,2.24,2.5,2.8,3.15,3.55,4,4.3,4.65	4.71–137
2800 x 600 - 2500	0.40,0.50,0.63,0.80,0.90,1,1.12, 1.25,1.40,1.60,1.80,1.90,2,2.24,2.5,2.8,3.15,3.55,4,4.3,4.65	1.68-153
3200 x 600 - 1500	0.40,0.50,0.63,0.80,0.90,1,1.12, 1.25,1.40,1.60,1.80,1.90,2,2.24,2.5,2.8,3.15,3.55,4,4.3,4.65	1.92-175
3600 x 600 - 1500	0.40,0.50,0.63,0.80,0.90,1,1.12, 1.25,1.40,1.60,1.80,1.90,2,2.24,2.5,2.8,3.15,3.55,4,4.3,4.65	2.16-197
4000 x 600 - 1500	0.40,0.50,0.63,0.80,0.90,1,1.12, 1.25,1.40,1.60,1.80,1.90,2,2.24,2.5,2.8,3.15,3.55,4,4.3,4.65	2.40-218
